FX1000 · Complete Buggy

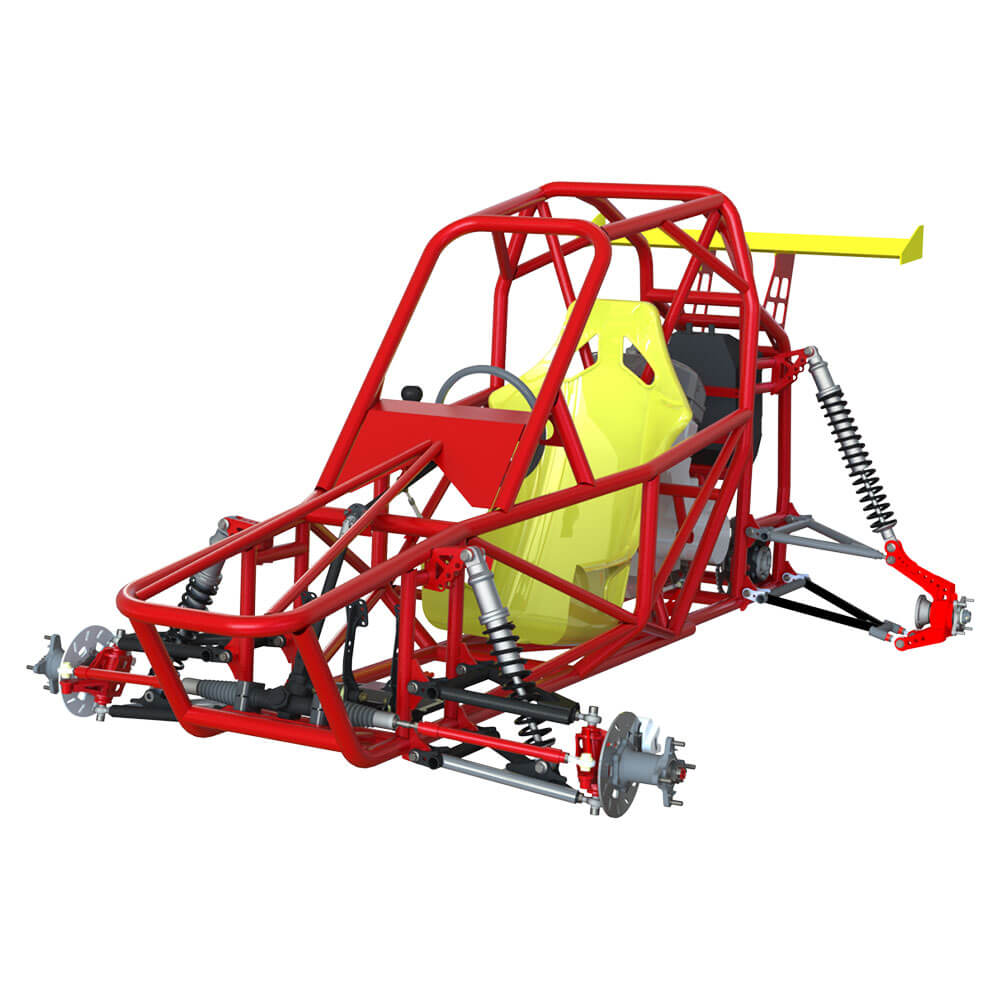

FX1000 Crosskart Buggy – Full Kit
The most complete FX1000 kit: everything to build the buggy yourself. Add an engine, rims and tyres.
Indicative price
Complete kits are put together to order. Request a quote and we reply within one working day with the price, delivery time and advice for your build.
Request a quoteWe don't ship physical products to the United States and Canada. Plans and laser files are available.
- Reply within one working day with price and delivery time
- Worldwide shipping with FedEx, cost in the quote
Everything but the engine
This is the most complete kit we offer. You get everything you need to build your own FX1000 crosskart buggy: all you still need is an engine, and rims and tyres that suit the terrain you ride.
The FX1000 is designed for gravel tracks and medium-rough terrain. A stiff tubular frame, independent double A-arm suspension and a short ratio steering rack make it fast, precise and an easy-to-tame beast.
Off-road use only: the FX1000 is not road legal and not homologated for competition.
- Stiff tubular frame
- Independent double A-arm front and rear suspension
- ProTech single adjustable shock absorbers: 400S front, 600S rear
- Wilwood brakes at the front, Honda PC35 caliper on the center hub
- RCI fuel tank and Kirkey seat
- Low-friction hinge bushes on A-arms, pedals and gear lever
- Building plan as hard copy
Technical specifications
| Wheelbase | 2080 mm |
|---|---|
| Track width | ± 1500 mm |
| Overall length | ± 2800 mm |
| Weight of the built buggy | ± 360 kg (excl. driver) |
| Engine | Chain-driven motorcycle engine with sequential gearbox, up to 180 hp and 120 Nm (not included) |
| Wheels | 110/4 bolt pattern, Ø90 mm rim center bore |
| Driveshafts | BMW E34, refurbished (included) |
| Shipping weight | 210 kg |
| Part number | 00003 |
What's in the box
Included
- Tubular frame: pre-cut and bent main tubes, all sheet metal parts
- Engine mounting: precision bushings and silent blocks
- RCI Drag Race fuel tank and brackets
- Kirkey seat and brackets
- Rear suspension with center hub and 2 × ProTech 600S single adjustable shock absorbers + springs
- BMW E34 driveshafts (refurbished) and Honda PC35 left brake caliper
- Front suspension with 2 × ProTech 400S single adjustable shock absorbers + springs
- Wilwood PS-1 brake calipers and pads
- Pedal box with Wilwood TM1 master cylinder and reservoir kit, throttle and clutch cables
- Gear lever assembly with aluminium knob and 1400 mm push-pull cable
- Steering system with short ratio steering rack, HD joints and 300 mm steering wheel
- Brake lines
- All bearings, bushes, bolts, nuts and other fasteners
- Detailed building plan (hard copy) with build sequence, instructions and welding jigs
Your work
The plan shows you how.
- Welding
- Painting
- Bending the sheet metal plates
Source separately
Not included, but needed to finish the build.
- Engine: chain-driven motorcycle engine, up to 180 hp
- Rims and tyres (110/4)
- Cockpit side bars
- Top nose tubes
