FX1000 · Building Plans

Complete Plan FX1000 Crosskart Buggy

Everything you need to build the whole FX1000 yourself: build sequence, instructions and production drawings for every module. No reverse engineering, no guesswork.

  • PDF
  • 290 pages
  • English
  • All 7 modules
Choose your package
€83.50€101.04 incl. 21% VAT · VAT outside NLexcl. VAT · VAT outside NL

Instant download · link in your account and by email right after payment

  • iDEAL, cards, PayPal and Apple Pay
Not sure yet? Start with the free frame plan and see how our plans work. Get it free
€83.50€101.04

What's inside the plan

From novice builders to seasoned enthusiasts: clear instructions and production drawings that take you from tubes and plates to a finished buggy.

01

Build sequence

Step-by-step order of work for every module, so you always know what comes next.

02

Production drawings

Dimensioned drawings for every custom part: tubes, plates and machined parts, with tolerances for the precision parts.

03

1:1 welding jigs

Printable full-size drawings to use as welding jigs, for example for the A-arms.

04

Assembly instructions

Exploded views with numbered parts, so every assembly step is clear. The engineering is already done.

05

Parts lists

A bill of materials per module. Part numbers match the part numbers in our shop.

06

Safety checklist

What to check before every ride: steering, brakes, welds, bolts, chain, tyres and throttle cable.

Sample pages

1 / 4

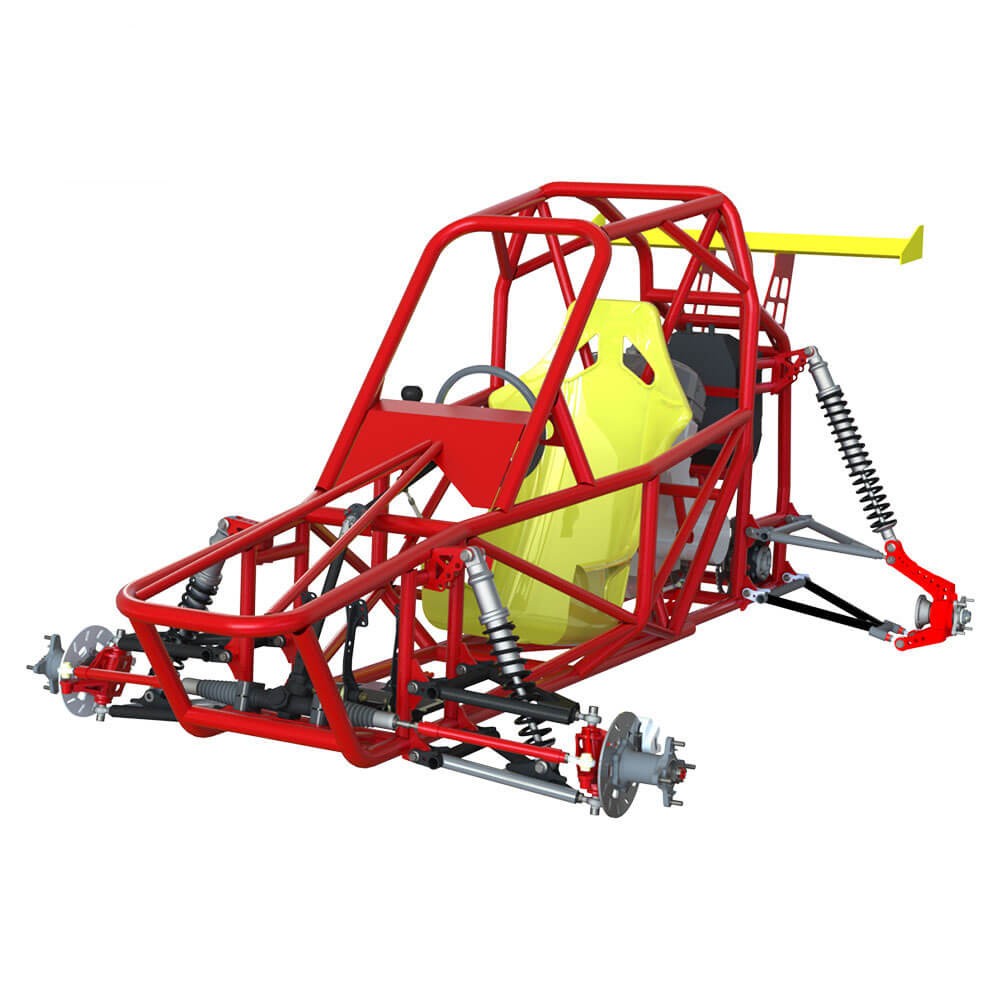

The FX1000 at a glance

The FX1000 is a single-seat off-road crosskart buggy for gravel tracks and medium-rough terrain. A short wheelbase, low centre of gravity and independent double A-arm suspension make it fast, agile and an easy-to-tame beast.

This plan covers all seven modules, from the tubular frame to the gear lever. You download the PDF right after payment. Want the sheet metal parts laser cut? Add the DXF laser files.

Off-road use only: the FX1000 is not road legal and not homologated for competition.

  • Tubular frame for optimum stiffness
  • Independent double A-arm front and rear suspension
  • For chain-driven motorcycle engines with an internal sequential gearbox
  • Pedal box with adjustable travel for clutch and throttle
  • Wilwood tandem master cylinder and Wilwood front calipers
  • Low-friction hinge bushes on A-arms, pedals and gear lever
  • HD joints in the steering column

Technical specifications

Wheelbase2080 mm
Track width± 1500 mm
Overall length± 2800 mm
Weight± 360 kg (excl. driver)
EngineUp to 180 hp and 120 Nm (more? contact us first)
Steering rack ratio2.5:1
DriveshaftsBMW E34
Wheel bolt pattern110/4 (other patterns possible)
Part number02-0000-00000

The complete build

All 7 modules included

Build each module from the drawings, or skip the machining and buy that module as a ready-made kit.

  1. Module 1 Frame Buy as kit
  2. Module 2 Front suspension Buy as kit
  3. Module 3 Rear suspension Buy as kit
  4. Module 4 Center hub Buy as kit
  5. Module 5 Pedal box Buy as kit
  6. Module 6 Steering Buy as kit
  7. Module 7 Gear lever Buy as kit

Questions builders ask

How do I receive the plan?

Right after payment you get a download link by email and in your account.

Which engines fit the FX1000?

Chain-driven motorcycle engines with an internal sequential gearbox, up to 180 hp and 120 Nm. For a first build we advise a 600 cc fuel-injected engine.

Do I also need the laser files?

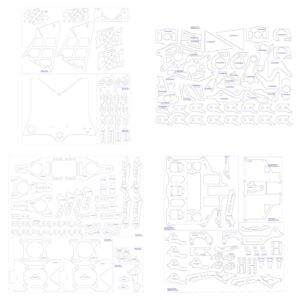

The plan has drawings of every part. With the laser files (DXF) a laser cutting shop can cut all sheet metal parts straight away, so you don't have to draw them yourself.

What skills and tools do I need?

You need to read technical drawings and weld (MIG/MAG for the frame and A-arms, TIG for small parts), and cut and bend tubes or buy them bent. A small press and a heat source for the bearings; further standard tools.
