Laser Files Complete FX1000 Crosskart Buggy

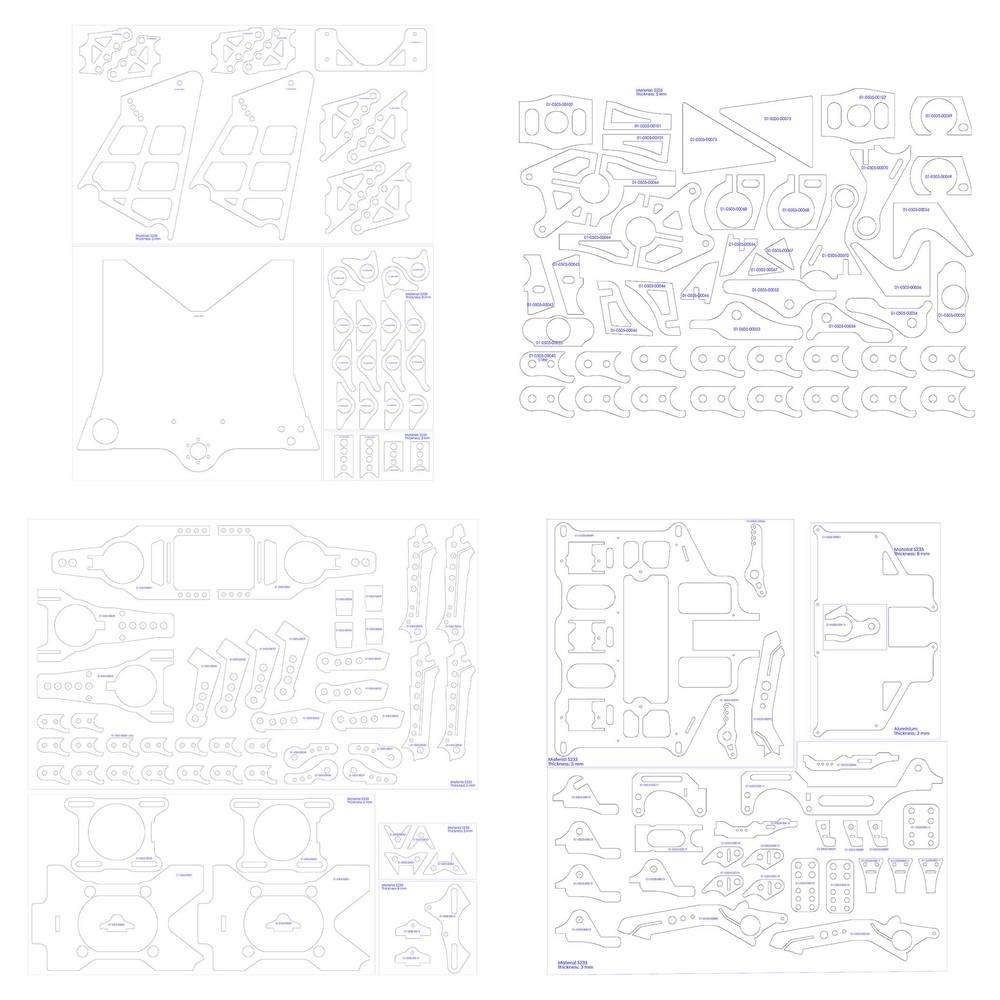

DXF files of all laser-cut sheet metal parts of the FX1000, ready to load into a laser cutter.
- DXF
- All 7 modules
- iDEAL, cards, PayPal and Apple Pay
About the laser files
These are the DXF files to laser cut the sheet metal parts of the FX1000 crosskart buggy. A laser cutting shop can load them straight into its machine.
You download the files right after payment. The laser files don't replace the plan: you need the building plan to make and assemble the buggy.
- DXF files for all laser-cut sheet metal parts
- Ready to load into a laser cutter
- Holes are 1 mm under size, to drill to the final size
- Part numbers match the plan and the shop
Technical specifications
| File format | DXF (zip) |
|---|---|
| Part number | 02-1000-00000 |
Questions builders ask
How do I receive the plan?
Right after payment you get a download link by email and in your account.
Which engines fit the FX1000?
Chain-driven motorcycle engines with an internal sequential gearbox, up to 180 hp and 120 Nm. For a first build we advise a 600 cc fuel-injected engine.
Do I also need the laser files?
The plan has drawings of every part. With the laser files (DXF) a laser cutting shop can cut all sheet metal parts straight away, so you don't have to draw them yourself.
What skills and tools do I need?
You need to read technical drawings and weld (MIG/MAG for the frame and A-arms, TIG for small parts), and cut and bend tubes or buy them bent. A small press and a heat source for the bearings; further standard tools.
