FX1000 · Building Plans

Tubular Frame Plan for Crosskart Buggy

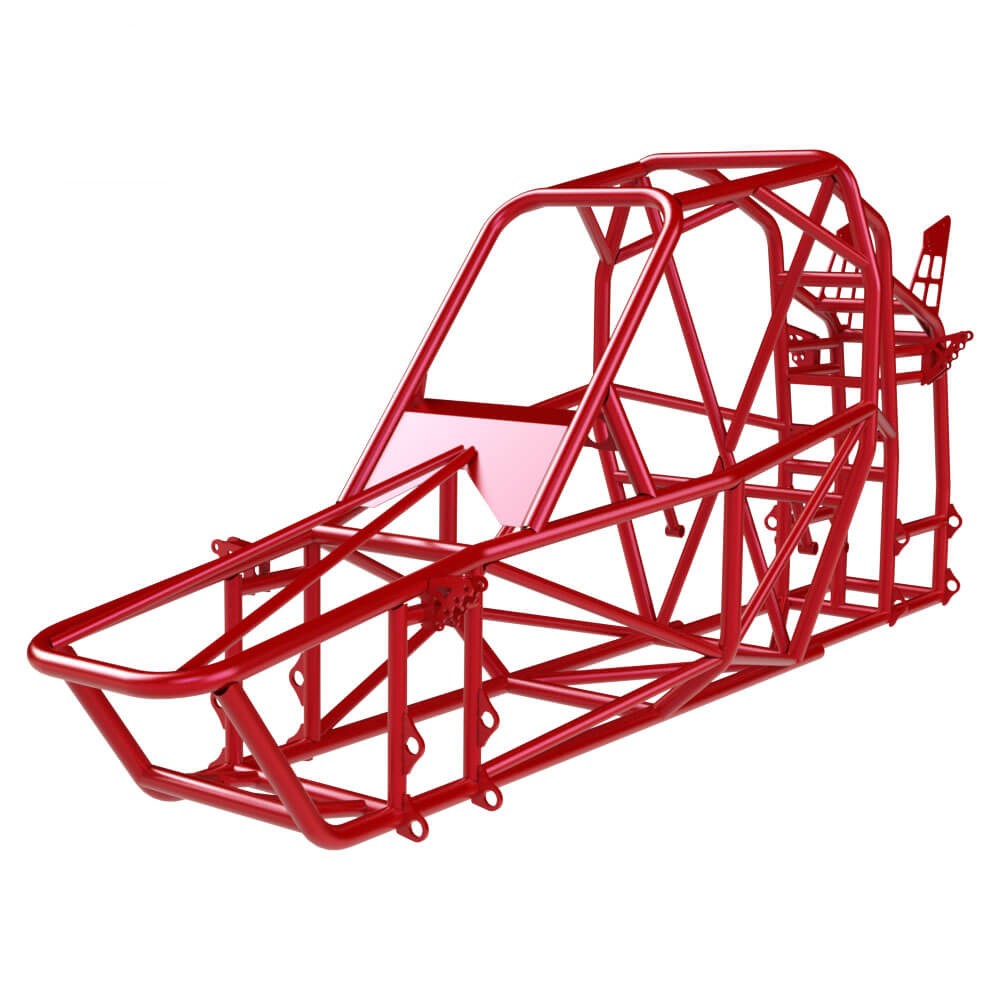

This is the technical drawing to build a solid but light weight tubular roll cage frame for your crosskart buggy.

  • PDF
  • 66 pages
  • English
Choose your package
€0.00

Instant download · link in your account and by email right after payment

  • iDEAL, cards, PayPal and Apple Pay

What's inside the plan

From novice builders to seasoned enthusiasts: clear instructions and production drawings that take you from tubes and plates to a finished buggy.

01

Build sequence

Step-by-step order of work for every module, so you always know what comes next.

02

Production drawings

Dimensioned drawings for every custom part: tubes, plates and machined parts, with tolerances for the precision parts.

03

1:1 welding jigs

Printable full-size drawings to use as welding jigs, for example for the A-arms.

04

Assembly instructions

Exploded views with numbered parts, so every assembly step is clear. The engineering is already done.

05

Parts lists

A bill of materials per module. Part numbers match the part numbers in our shop.

06

Safety checklist

What to check before every ride: steering, brakes, welds, bolts, chain, tyres and throttle cable.

Sample pages

1 / 4

About this product

This plan contains 66 pages with highly detailed assembly and production drawings, part lists and descriptions.

The frame has a strong construction with seamless tubing and 1 main roll bar just behind the seat. It has an adjustable engine bay space with silent block bushings for engine mounting. Comes with detailed production and bending drawings including A-arm and shock mounting points. Main tubes are Ø40 x 2.0 mm with secondary tubes of Ø32 x 2.5 mm and reinforcement tubes of Ø28 x 2.0 mm.

This plan is a downloadable file. You will receive a PDF file, which can be downloaded immediately after purchase. If you want to produce your own parts, make sure you get the DXF files of the buggy frame as well.

  • Strong construction with seamless tubing
  • Adjustable engine bay space. (wheelbase)
  • Main seamless tubes Ø40x2.0, Ø30x2.0, Ø28x2.0 and Ø22x2.0 mm
  • Silent blocks bushings for engine mounting

Technical specifications

Part number02-0000-00001

Part of the FX1000 build

Where this fits

  1. Module 1 Frame You are here

Questions builders ask

How do I receive the plan?

Right after payment you get a download link by email and in your account.

Which engines fit the FX1000?

Chain-driven motorcycle engines with an internal sequential gearbox, up to 180 hp and 120 Nm. For a first build we advise a 600 cc fuel-injected engine.

Do I also need the laser files?

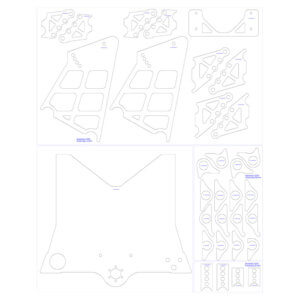

The plan has drawings of every part. With the laser files (DXF) a laser cutting shop can cut all sheet metal parts straight away, so you don't have to draw them yourself.

What skills and tools do I need?

You need to read technical drawings and weld (MIG/MAG for the frame and A-arms, TIG for small parts), and cut and bend tubes or buy them bent. A small press and a heat source for the bearings; further standard tools.
