Gear Lever assembly Plan for Crosskart Buggy
This is the technical drawing to build the gear lever for your crosskart buggy.
- 27 pages
- English
- iDEAL, cards, PayPal and Apple Pay
What's inside the plan
From novice builders to seasoned enthusiasts: clear instructions and production drawings that take you from tubes and plates to a finished buggy.
Build sequence
Step-by-step order of work for every module, so you always know what comes next.
Production drawings
Dimensioned drawings for every custom part: tubes, plates and machined parts, with tolerances for the precision parts.
1:1 welding jigs
Printable full-size drawings to use as welding jigs, for example for the A-arms.
Assembly instructions
Exploded views with numbered parts, so every assembly step is clear. The engineering is already done.
Parts lists
A bill of materials per module. Part numbers match the part numbers in our shop.
Safety checklist
What to check before every ride: steering, brakes, welds, bolts, chain, tyres and throttle cable.
About this product
This plan contains 27 pages with highly detailed assembly and production drawings, part lists and descriptions.

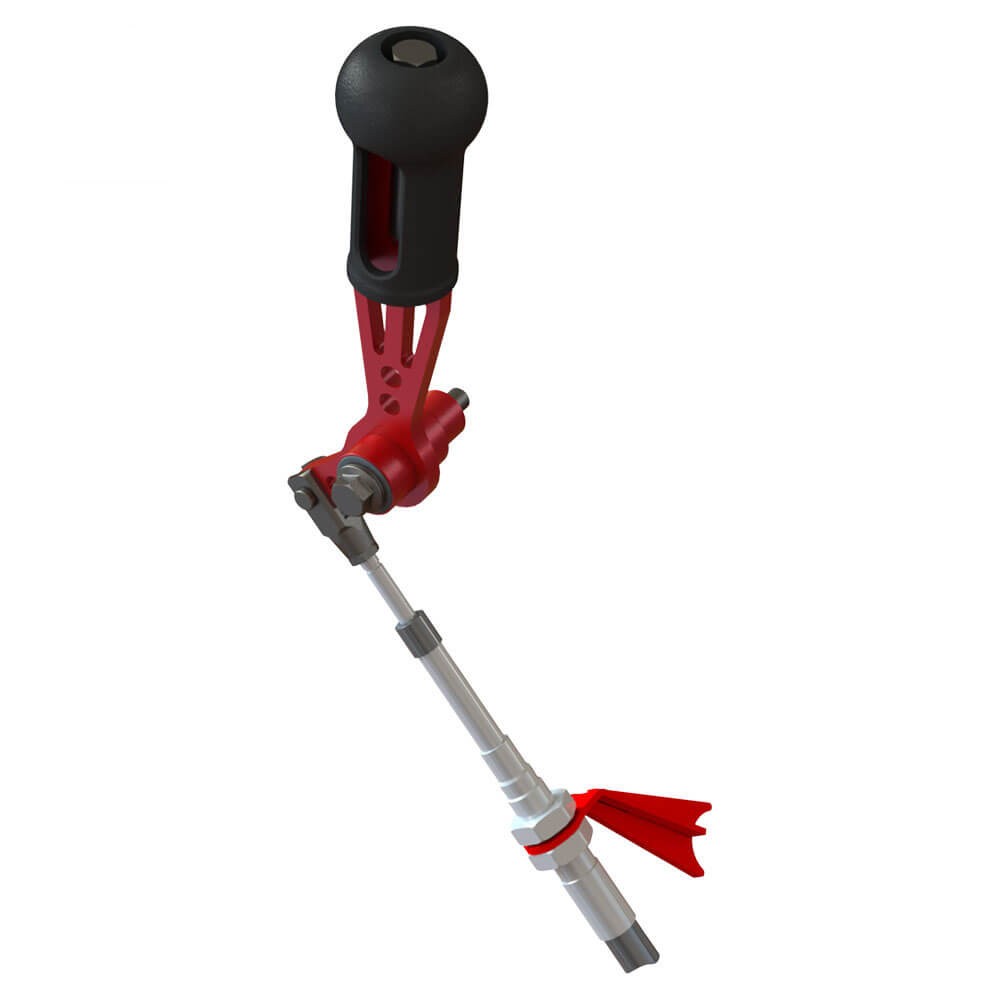

The gear lever has an aluminium ergonomic handle with a strong steel holder to translate you gearshift movement into the push pull cable. Weld on brackets for the push pull cable are also included in the plans. The hinge parts used for the gearlever are the same as the A-arm bushing with low friction but high precision manufacture methods to achieve a solid and reliable gear change.
This plan is a downloadable file. You will receive a PDF file, which can be downloaded immediately after purchase.
- Low friction hinge in gearlever
- Ergonomic gear lever handle
- M5 rod end at gearbox side
- Optional spring returner for push pull cable (contact us for more info)
- Max travel of 24 mm when using spring returner. (without spring returner travel will be limited inside gearbox)
- Brackets on both push pull cable ends
Technical specifications
| Part number | 02-0000-00006 |
|---|
